Coral Reef & Helix Anchors
Moorings & Products to protect environmentally sensitive areas from anchor damage.

coral reef background and experience

reef pin moorings

coral reef facts


Background
and Experience

Reef Pin
Moorings

Coral Reef Facts

Reef Pin Moorings

reef pin installation

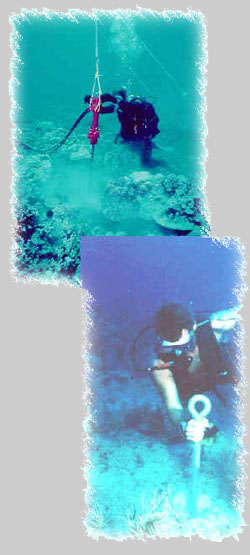

Drilling

Reef pins are installed into the denser dead coral of the reef. The only impact on the reef is the diameter of the drill bit (1-1/2 in).

The hydraulic drill hammer, supported from a vessel above, is the least obtrusive means of installing a mooring.

Ease of drilling is accomplished by the use of a carbide bit.

Installation

The hot-dipped galvanized reef pin has a forged eye, with a large eye to accept larger diameter shackles or mooring line with protective hose.

The pin is 18 inches long with a diameter of 1-1/4 inches, offering a larger surface area than the typical pin for the epoxy to adhere to.

Injection of our epoxy cement is quick and clean and generates holding power far beyond typical cement.

Our Reef Pin

our reef pin

Industry Standard

their reef pin
