SL-B700 is a short-range buoySLB700

The SL-B700 is a short-range buoy ready for immediate installation. Typical applications include day and night channel, speed zone, restricted area marking and aquaculture.

The SL-B700 is extremely long-lasting, and is molded in strong, durable, UV-stabilized polyethylene. A large mooring chain attachment point accommodates a 5/8” (16mm) shackle or 1/2” (12mm) silver rope.

The SL-B700 incorporates an interconnected mooring and lifting eye for additional strength and flexibility in installation. The top section has 3 threaded studs, molded into the buoy to enable easy mounting of either the SL-15, SL-60 or SL-70 1-3NM+ solar lights.

Download Brochure


SLB700RB Regulatory Style BuoySLB700RB

The SLB700RB Regulatory Style Buoy meets USA Federal, State and Local requirements for regulatory buoys, and is ideal for regulatory signage and for marking hazards, mooring fields and channels in in-land lakes and rivers, as well as coastal harbors.

This model is extremely long-lasting, and is molded in strong, durable, UV-stabilized polyethylene. A large mooring chain attachment point accommodates a 5/8” (16mm) shackle or 1/@” (12mm) silver rope.

The SLB700RB Regulatory Style Buoy incorporates an interconnected mooring and lifting eye for additional strength and flexibility in installation. The top section has 3 threaded studs, molded into the buoy to enable easy mounting of either the SL15, SL60 or SL70 1-3nm+ solar lights.

Vinyl buoy wraps constructed of heavy, 10 oz. vinyl, have standard regulatory symbols and wording and are highly customizable. Attachment is straightforward, with self-sealing rivets (standard) or Velcro® for temporary or emergency applications.

We also provide the option of customized graphics which are permanently molded into the product at the time of manufacture and will hold up under the most extreme environments and never peel off or fade over time.

The SLB700 is used extensively throughout North America by Federal, State, and Local authorities as well as Private Organizations.

Available colors:

  • Regulatory Buoy– Orange/ White
  • Hazard Buoy– Orange
  • Channel Markers– Red or Green
  • Special Purpose– Yellow

Download Brochure

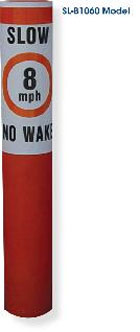

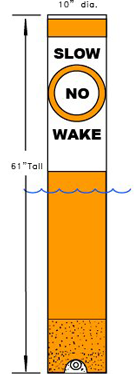

Spar BuoyOur spar buoys are a high-quality, affordable buoys ideal for marking hazards, mooring fields and channels in lakes and ponds.

The buoys are available in 61 inch and 76 inch heights. They are rotationally-molded in one piece using UV-stabilized polyethylene making them almost indestructible. The buoys are completely foam filled for added strength and buoyancy and are virtually unsinkable in the unlikely event of damage.
The anchor point is recessed giving the buoys a flat base so they are able to stand upright for easy and convenient storage.

An internal concrete counterweight gives the buoy a lower center of gravity, providing more stability so the buoy is able to stand more upright on station.

The USCG approved optional reflective band gives unmatched night time visibility. The SL-B1060 buoy can be fitted with an SL-15 or SL-60 solar lantern further increasing visibility to 1-3NM+.
The SL-1060 is available with customizable signage made from a vinyl 'buoy wrap' which is easily replaced if damaged.

Available colors: Spar Buoy

  • Regulatory Buoy– Orange/ White
  • Hazard Buoy– Orange
  • Special Purpose– Yellow
  • Channel Markers– Red, Green or Black
  • Navigational– White with Black top or White with Red top
  • Custom colors are available on request.

Download Brochure


SLB600/SLB610 600mm dia. Marker Buoy

SLB600/SLB610 600mm dia. Marker BuoyThe SLB600 is a short-range buoy ready for immediate installation. Typical applications include day and night channel, speed zone and restricted area marking.

The SLB600 is extremely long-lasting, and is molded from strong, durable UV stabilized polyethylene. The base of the buoy is steel-shot filled, and the top section is polyurethane foam filled, providing excellent buoyancy and stability. A large mooring chain attachment point accommodates a 16mm shackle or 12mm silver rope.

The complete assembly is only 16kg (35.2lb) and is exceptional value for money. The unit is available in standard high visibility Yellow, Green, Red and White colors, along with a range of mould-on graphics including "Stop No Boats" and "5 Knots" (customized lettering available on request).

Download Brochure


SLB1250 1250mm dia. Navigation Buoy

SLB1250 1250mm dia. Navigation BuoyThe SLB1250 has proven it's superior performance in many parts of Australia for long range river and sea navigation.

The base is molded in a one-piece strong, colored, durable polyethylene - filled with highly buoyant polyurethane and UV stabilized for resistance to sunlight.

The strong, lightweight polyethylene buoy top is molded in standard IALA high visibility colors and shapes.

A powder-coated extension pole may be supplied to increase the focal height of the Sealite lantern, and for superior night vision, the SLB1250 may be fitted with a choice of one, two or three nautical mile LED lanterns.

Brass inserts provide a secure mounting for top, tower and signs. A 316-grade stainless-steel eyebolt passes through the base providing a strong mooring chain attachment point. In addition, all hardware and fittings are 316-grade stainless-steel.

Download Brochure


POSEIDON-1750 1750mm dia. Ocean Buoy

POSEIDON-1750 1750mm dia. Ocean BuoyThe Sealite POSEIDON-1750 Buoy is manufactured from UV stabilized virgin polyethylene, has been specifically designed to withstand the harsh marine environment, and operate reliably with minimal maintenance.

The POSEIDON-1750 boasts a huge 23mm wall thickness, 2.5 meter focal height (up to 3 meters with extension) and is 1.75 meters in diameter - making it one of the toughest polyethylene buoys on the market.

Ports worldwide are realizing the advantages of polyethylene buoys over traditional steel models.

The POSEIDON-1750 is a lightweight, low-maintenance, cost-effective approach to traditional floating aids. The buoy consists of 3 parts; the flotation section, the mid-section and a navaid (top) section. This enables the individual coloring of each section during the molding process to meet IALA recommendations for specific installations, and cost-effective transportation.

The top section incorporates the solar modules, batteries, LED beacon and insertion fittings to accommodate top marks and accessories. This section is fitted with up to 60watt solar modules, charging up to 140Ah batteries. A watertight 316-grade stainless steel battery access door protects the internal components and connections of the unit. The Sealite SL125 LED lantern is readily fitted to the top of the buoy, and a 316-grade stainless steel grab rail is fitted below the top section - allowing for easy maintenance.

The float section contains internal stainless steel cross-braces, linking both sets of lifting and mooring eyes. This ensures mooring and lifting stresses are evenly shared across the structure. After ballast is added, the bottom section is filled with closed-cell polyurethane. The standing platform on the surface of the float section is molded with an anti-slip pattern, and conforms to CSIRO specifications.

Download Brochure


NAUTILUS-2200 2200mm dia. Ocean Buoy

NAUTILUS-2200 2200mm dia. Ocean BuoyThe NAUTILUS-2200 is a robust, rotationally-moulded polyethylene ocean buoy designed for offshore port and coastal applications.

Ports worldwide are realizing the advantages of polyethylene buoys over traditional steel models.

The buoy is rotationally-moulded by Sealite from UV-stabilized virgin polyethylene, and has a 2.2mtr float diameter and 3.2mtr lantern focal height. Lantern focal height may be increased up to 4mtrs.

Built in a 2-part modular design, the buoy can be setup in any IALA recommended assembly, and consists of a high-visibility float section with non-slip tread, and a tower section to support considerable payload.

The twin lifting and mooring eyes are interconnected by stainless steel tie bars through the hull structure – offering enormous strength and superior longevity of the navaid.

Five (5) buoys can be shipped in a 40ft container economically to almost any destination.

The Sealite Nautilus-2200 is one of the largest buoys available to incorporate a 1-piece rotationally-moulded hull section, and represents exceptional value for port operators around the world.

The Nautilus-2200 is one of the only ocean buoys to incorporate convenient forklift access points to safely maneuver the assembly as required.

Download Brochure


TRIDENT-3000 3000mm dia. Ocean Buoy

TRIDENT-3000 3000mm dia. Ocean BuoyThe TRIDENT-3000 is one of the largest rotationally-molded buoys available, with a float diameter of 3 meters and lantern focal height of up to 5 meters.

The float section of the TRIDENT-3000 is built from four (4) roto-moulded quadrants, which fasten together to form an incredibly robust 3 meter wide float section standing 1.8m tall. Each quadrant is molded from UV stabilized virgin polyethylene, and has a 12mm wall thickness. In addition, each section is filled with closed-cell polyurethane, which prevents the ingress of moisture in the unlikely event of damage.

A 316-grade stainless-steel mooring pole runs through the centre of the assembly, to which the tower section is fastened. Two large lifting eyes aid in buoy mooring and periodic servicing.

The four-sided tower section of the TRIDENT-3000 provides unsurpassed strength, and is fabricated from 316-grade stainless-steel – providing an estimated lifespan in excess of 20 years.

Rotationally moulded paneling is fitted to the outside of the tower section to create a large, colored visual area for marking. The replaceable paneling also simplifies cardinal marking, and gives operators flexibility in stocking spare components. No part of the structure requires painting at any stage of the products lifespan.

An integrated ladder with harness attachment points runs vertically up the tower to the top platform. The internal top operational platform is designed to provide a safe working area for contractors.

The buoy is lightweight, and can be rested upright on the vessel deck for ease of deployment and final inspection.

A large counterweight offers exceptional stability in a variety of exposed regions.

The TRIDENT-3000 can be supplied in all IALA colors, and side-paneling is available to aid in clear lateral marking – creating a huge visual area.

Download Brochure
